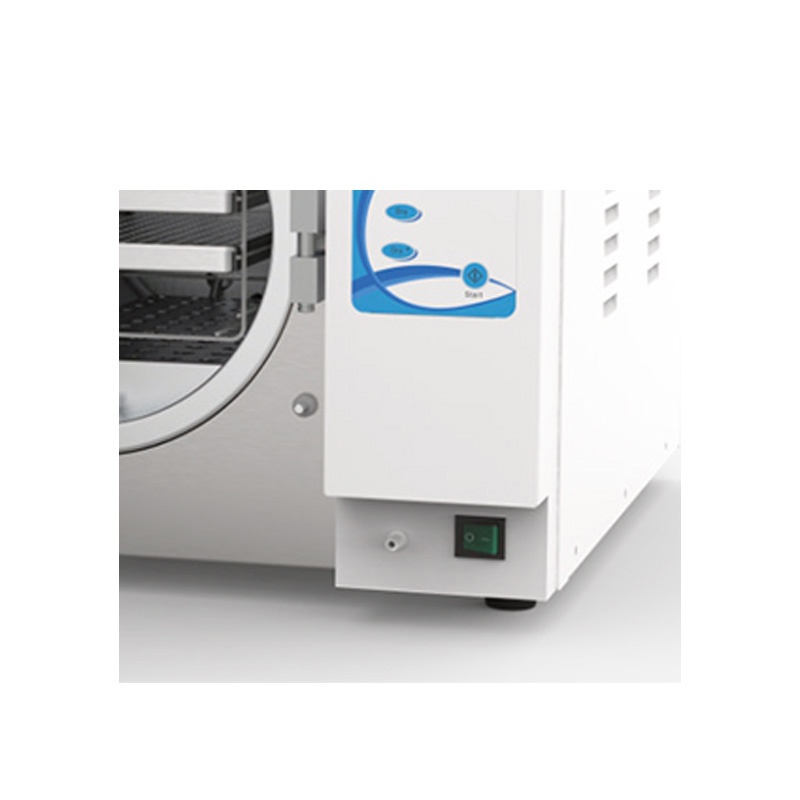

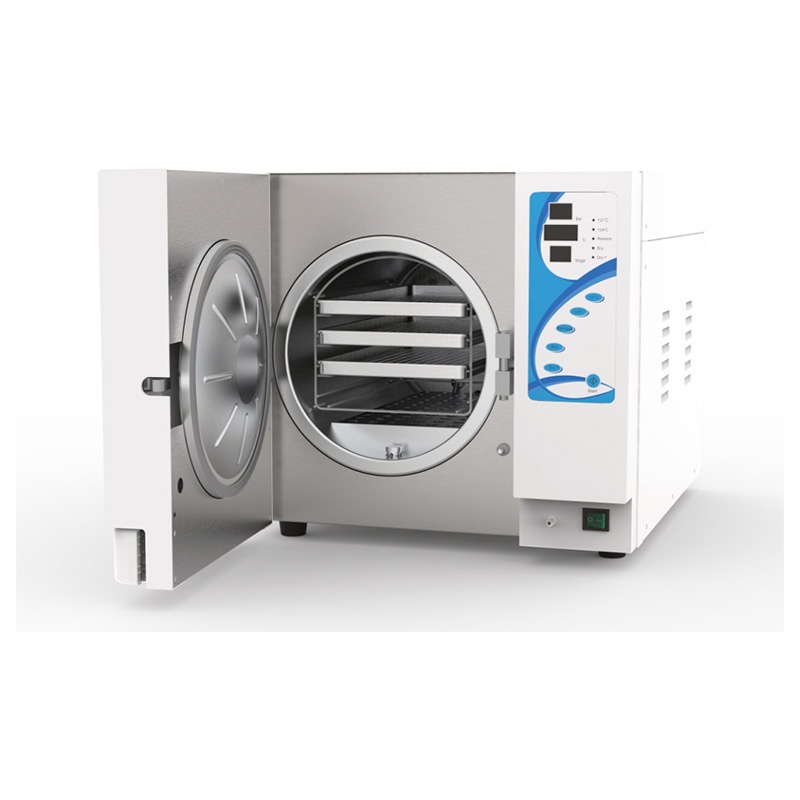

HG-AC523 23L Class N Sterilization USB Autoclave

Class N Sterilizers Autoclave

· Standard pre-programmed cycles: 134ºC, 121ºC.
· Steam generator: No steam generator.
· Water Reservoir: No water reservoir, water has be filled inside of the chamber before sterilization.
· LED Display: Displaying for cycle process, time, temperature, pressure, process alert and error codes.
· Safety system: Temperature and pressure overload protection. Safety lock prevent from opening if chamber is pressurized.

Technical Data

Model Number

AC318/AC323

AC418/AC423

AC518/AC523

Voltage. Freq.

220/110V, 50/60z

Power

1500W

Chamber Volume

appr. 18L (AC318/AC418/AC518), appr. 23L (AC323/AC423/AC523)

Chamber Dimension

Ø247x350mm (18L), Ø247x450mm (23L)

Size of Trays(WxH)

192x285mm (18L) ,192x380mm (23L)

Material of Trays

Aluminum

Number of Trays

2/ Max. 4

Weight

32kg/36kg

33kg/37kg

33.5kg/37.5kg

Overall Dimension(Wx H x D)

483x450x515 mm (AC318/AC418/AC518)

483x450x615 mm (AC323/AC423/AC523)


Defult Program

Temp.

AC318/AC323

AC418/AC423

AC518/AC523

Sterilization Program

134ºC/210Kpa, 121ºC/110Kpa

Sterilization Time

134ºC, Default 30min (30~60min adjustable)



121ºC, Default 10min (10~20min adjustable)

Dry

No

Default 60min (1~60min adjustable)

Default 60min (1~60min adjustable)

Dry +

No

No

Default 60min (1~60min adjustable)
