Products >> Autoclave Steam Sterilizer >> Class N

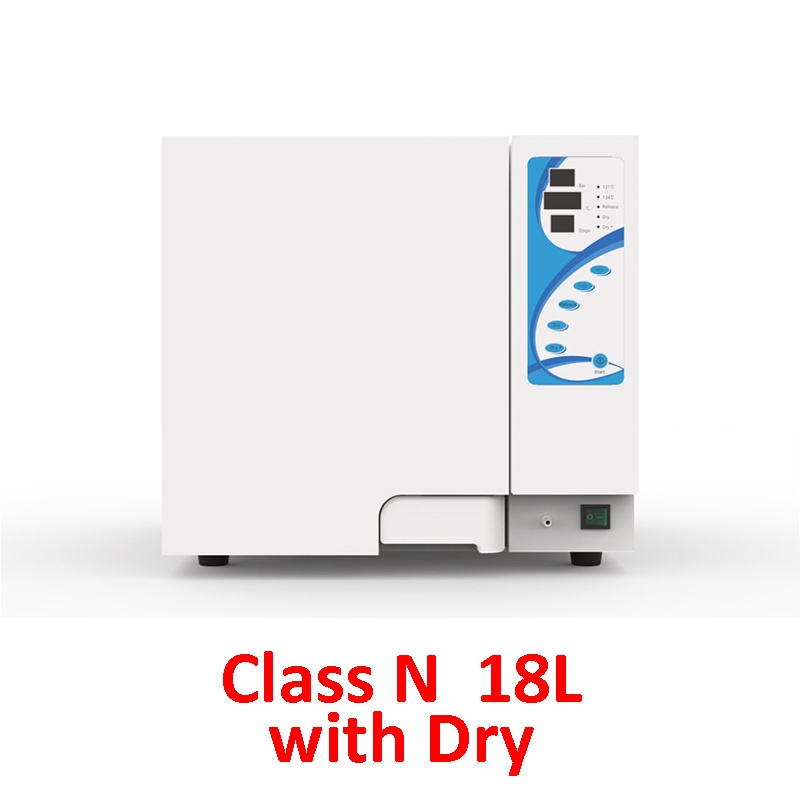

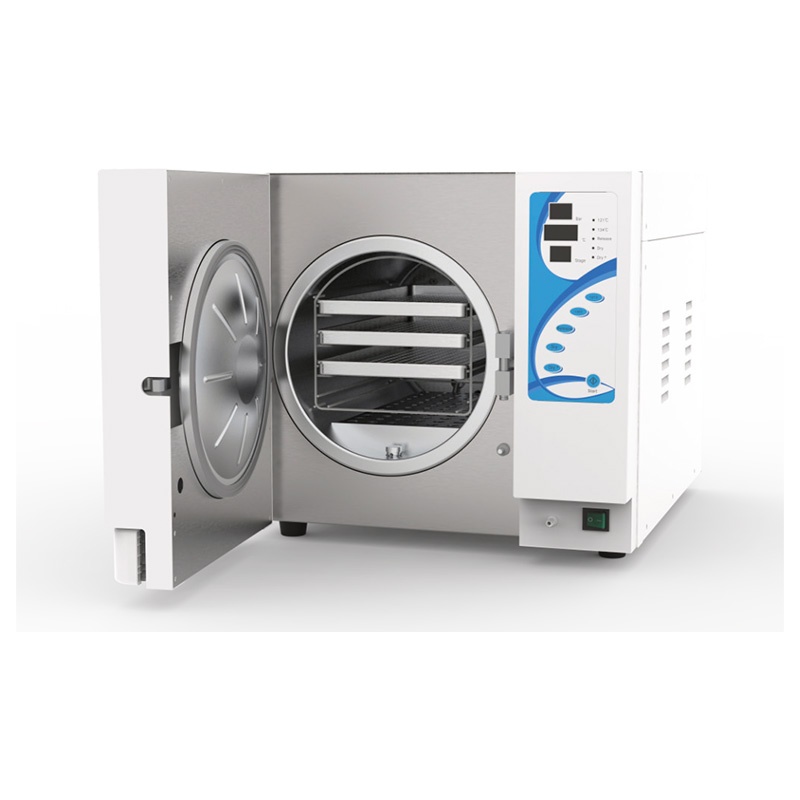

HG-AC423 18L Class N Sterilization USB Autoclave
- Product No.:HG-AC423
Class N Sterilizers Autoclave
· Steam generator: No steam generator.
· Water Reservoir: No water reservoir, water has be filled inside of the chamber before sterilization.
· LED Display: Displaying for cycle process, time, temperature, pressure, process alert and error codes.
· Safety system: Temperature and pressure overload protection. Safety lock prevent from opening if chamber is pressurized.
Technical Data
Model Number | AC318/AC323 | AC418/AC423 | AC518/AC523 |
Voltage. Freq. | 220/110V, 50/60z | ||
Power | 1500W | ||
Chamber Volume | appr. 18L (AC318/AC418/AC518), appr. 23L (AC323/AC423/AC523) | ||
Chamber Dimension | Ø247x350mm (18L), Ø247x450mm (23L) | ||
Size of Trays(WxH) | 192x285mm (18L) ,192x380mm (23L) | ||
Material of Trays | Aluminum | ||
Number of Trays | 2/ Max. 4 | ||
Weight | 32kg/36kg | 33kg/37kg | 33.5kg/37.5kg |
Overall Dimension(Wx H x D) | 483x450x515 mm (AC318/AC418/AC518) | ||
483x450x615 mm (AC323/AC423/AC523) |
Defult Program
Temp. | AC318/AC323 | AC418/AC423 | AC518/AC523 |
Sterilization Program | 134ºC/210Kpa, 121ºC/110Kpa | ||
Sterilization Time | 134ºC, Default 30min (30~60min adjustable) | ||
121ºC, Default 10min (10~20min adjustable) | |||
Dry | No | Default 60min (1~60min adjustable) | Default 60min (1~60min adjustable) |
Dry + | No | No | Default 60min (1~60min adjustable) |
