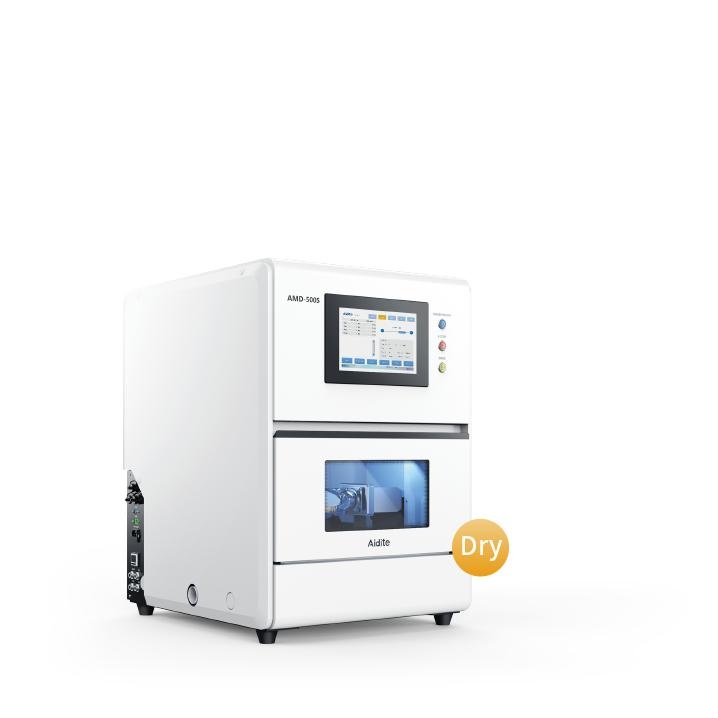

AMD-500S Dry Milling Machine

Product No.：AMD-500S
Online Inquiry

[ Introduction ]

AMD-500S is a high-precision, high-efficiency five-axis dry milling machine with stable operation, powerful functions and easy operation. 90° vertical processing, intelligent maintenance reminder, safety door function, integrated silicone seal and dust-proof design, bring you the most ideal processing solution.

[ AMD-500S Highlights ]

Parameter

Platform	Aviation Aluminum Casting Structure

Dimensions and weight	590×730×820(mm)

Weight	180Kg

Number of axes	5-axis Linkage Zirconia Milling Machine

Processing methods	Dry milling

Processing material	Zirconia, Pmma, Wax, And Other Dry-milling Dental Soft Materials

Processing material thickness	10-30mm

Repeatability	± 5μm

Linear drive system	Linear Guide And Screw

Rotary drive system	Harmonic Reducer

Control System	Embedded Cnc System And AC Bus Servo Motor

Automatic tool change quantity	10 Pieces

90° buccal processing	Support

Safety door	Support

Power supply	Single-phase Ac 220v 50/60hz Voltage

Power consumption	1.6kw 8a

Air Pressure	≥6Bar

[ Spinde ]

Power Consumption: Ac 1500w
Water Cooling
Speed: 60000rpm
Chuck Size: Φ4 Mm

[ Machining angle ]

Xyz Axis: 180x110x100(mm)
Ba Axis: B: ±30° -90°;
A: ±360°

[ Machining type ]

Single Crown, Bridges, Veneers, Inlays, Abutments, Screw-retained Crowns, Screw-retained Bridges (Implantation Needs To Add A Separate Nesting Module)

[ Detail Effect ]

[ FAQ ]

Q: How can get a catalog and price list?
A: Please use the inquiry form to request our price list and complete products' catalog, or talking with us directly through platform.

Q: What is the MOQ?
A: Our MOQ is one set per model.

Q: What is the delivery time?
A: Normally within 15 working days after all payment.

Q: What's your price terms?
A: Our price is EX-Work price. For CIF & FOB price, welcome to contact us directly by email, phone.

Q: What is the warranty for the products?
A: Normally one-year warranty, will be changed according to our specific products.

Q: What is your terms of payment?
A: If the order quantity is small, can transfer the full payment for the fast delivery. And when the total amount is large, we can also accept partial deposit for production and remaining balance before shipping.

Q: Do you accept OEM service?
A: Yes, OEM service available, we are the factory, please provide your detailed needs
